Quick Start Guide
No app to download. No account to create. No subscription to activate. Charge it, clip it on, and go. This guide walks you through every step.
What's in the Box?
Lay everything out and make sure nothing is missing before you begin. Contents vary by kit:
Single Dog Kit ($249.99)
• GPS Tracker (clips onto your dog's collar) x1
• Silicone holder for tracker x1
• Handheld controller x1
• Antenna for controller x1
• Collar strap x1
• USB charging cables x2
• Quick start card x1
Double Dog Kit ($379.99)
• Everything above, plus a second tracker, holder, strap, and charging cable
Missing something? Email service@aorkuler.com with your order number.
Charge Both Units Fully
Plug in both the tracker (collar unit) and the controller (handheld) using the included USB cables. Both need a full charge before first use.
While charging: The red LED flashes once every 2 seconds.
Fully charged: The red LED turns off completely.
Charging time: About 2–3 hours from empty to full.
Important: Use a standard USB charger (5V/1A). Fast chargers and high-wattage adapters can reduce battery lifespan over time. A laptop USB port or a basic phone charger both work well.
Set Up Your Tracker
The whole process takes about 5 minutes. First-time setup includes binding (pairing), which you only do once.
Attach the Antenna
Screw the antenna into the port on the upper left of the controller. Align it straight and turn clockwise until snug. Don't overtighten — finger-tight is enough. The antenna extends the radio range between the controller and tracker.
Power On Both Units (Go Outside First)
Take both units outdoors with a clear view of the sky. Press and hold the power button on the tracker until the LED flashes, then do the same on the controller. Both will start searching for GPS satellites automatically. This won't work indoors — GPS needs direct satellite visibility to get a position fix.
Calibrate the Compass
The controller will prompt you to calibrate. Hold it level and slowly wave your arm in a figure-8 (infinity ∞) pattern. This takes about 10 seconds. The compass is what makes the direction arrow accurate — skip this step and the arrow will point the wrong way. You'll need to recalibrate occasionally, especially after travelling by car or being near magnets.
Bind the Tracker to the Controller
Your controller and tracker are usually pre-paired before shipment. If you need to pair them again, long-press the multifunction button on the controller, select "Bind", and confirm. The tracker's blue LED will blink — press the power button once to pair. A connection icon indicates success. The devices will remember each other after pairing.
Wait for GPS Lock — Then You're Tracking
The GPS satellite icon on the controller will blink while it searches. Once both units lock onto satellites (usually 30–90 seconds outdoors), the screen shows a green arrow pointing toward your dog and the distance in feet or meters. That's it — you're live. The display updates every 3 seconds.
Clip the Tracker onto Your Dog's Collar
Slide the tracker into the silicone holder, then thread your dog's collar through both slots on the holder. Pull the strap tight so the tracker sits securely on top of the collar (back of the neck). Check that it doesn't swing or dangle — a loose tracker gets weaker GPS reception and can snag on brush.
Reading the Controller Screen
The Green Arrow: Points toward your dog's current position relative to you. Hold the controller level and face the direction the arrow points — walk that way to reach your dog.
Distance Number: Shows how far away your dog is in feet or meters (changeable in settings). Updates every 3 seconds.
GPS Icon (blinking): Still searching for satellites. Wait for it to go steady before moving.
GPS Icon (steady): Locked onto satellites. Tracking is live and accurate.
Nearby Mode: When your dog is within 10–20 meters, the screen switches to show you're close. Use the sound or light alarm to pinpoint them.
Red Arrow (last known position): If the radio connection drops (dog is out of range or behind a hill), the screen shows the last known direction and distance in red. Walk toward that position — the connection usually resumes as you get closer.
Battery Icons (T and C): T = tracker battery, C = controller battery. Charge when either drops to one bar.
Features Worth Knowing About
Sound Alarm
Open the menu and select 'Sound' to make the tracker beep continuously. Useful in thick brush, tall grass, or when your dog is close but out of sight. The beep is audible within a few feet — it's a close-range tool, not a long-distance one.
LED Light Alarm
Select 'Light' in the menu to make the tracker flash red, green, and blue. Best for dusk, dawn, or darkness when you can see the flashing but can't spot your dog's coat against the ground. Works well in combination with the sound alarm.
Language Settings
The controller supports English, French, and Spanish. Change the display language in the menu under 'Language'. All on-screen text and prompts will update immediately.
Distance Units
Switch between feet and meters in the menu under 'DistUnit'. The change applies instantly to the distance display on the tracking screen. Choose whichever you're more comfortable reading at a glance.
Tips and Common Situations
GPS takes 30–90 seconds to lock on first use
Every time you power on, the tracker and controller need to find GPS satellites. First use takes the longest (up to 2 minutes). Subsequent power-ons are faster because the devices remember recent satellite positions. If it's taking longer than 2 minutes, move to a more open area — buildings, dense tree canopy, and deep valleys all block GPS signals. The satellite icon stops blinking once a lock is established.
Keep the controller away from metal and electronics
The compass inside the controller is sensitive to magnetic interference. Holding it next to your phone, car keys, a belt buckle, or while leaning on a metal fence will throw off the direction arrow. For an accurate reading, hold the controller in your hand away from your body and any metal objects. If the arrow seems wrong, recalibrate with the figure-8 motion.

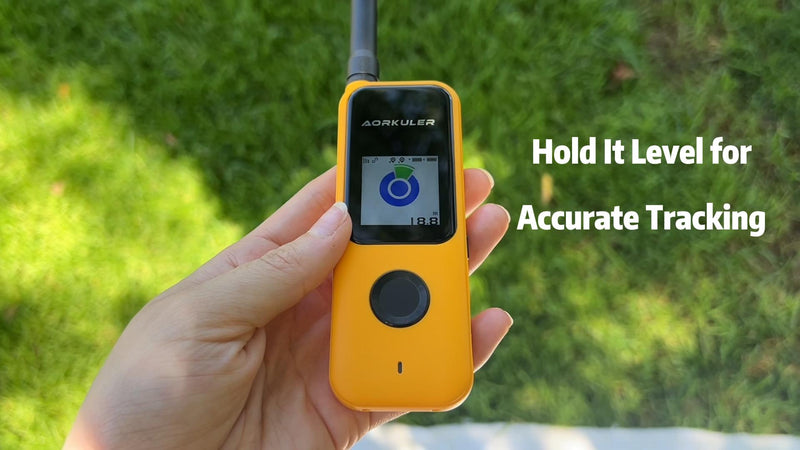

Hold the controller level for accurate direction
The compass works best when the controller is horizontal, like holding a plate. Tilting it at an angle, pointing it at the sky, or stuffing it in your pocket while checking will give you a skewed reading. Stop walking, hold it level at waist height, and let the arrow settle for a second before heading in that direction.
Range varies by terrain — here's what to expect
The rated range is 3.5 miles (5.6 km) in open, flat terrain with clear line of sight. In practice, expect shorter range in dense woods (1–2 miles), hilly terrain (depends on whether your dog is over a ridge), and suburban areas with buildings (1–2 miles). Water, metal structures, and steep rock faces also reduce range. If signal drops, walk toward your dog's last known position — it usually reconnects as you close the gap.
Mount the tracker on top of the collar, not underneath
GPS reception is strongest when the tracker has a clear view of the sky. Position it on the back of your dog's neck (top of the collar) rather than under the chin or on the side where your dog's head and body can block satellite signals. Thread the strap through both slots on the holder and pull tight — check the fit before each outing, as collars can loosen over time.
Turn off both units when you're done to save battery
The tracker and controller continue using battery power whenever they're on, even if you're not actively tracking. Power both off after each walk or outing. A full charge gives you about 24 hours of continuous active tracking, or 1–2 weeks of daily walks (a couple of hours per day). Leaving them on overnight is the most common reason people report shorter-than-expected battery life.
What to do if your dog goes over a ridge and signal drops
The screen will switch to a red arrow showing the last known direction and distance. Don't panic — this just means the radio signal between the tracker and controller is blocked by terrain. Walk toward the last known position. As you crest the ridge or move around the obstruction, the signal will usually reconnect and the arrow will turn green again with a live update. This is normal behaviour in hilly or mountainous areas.
Tracking Two Dogs at Once
The Double Dog Kit ($379.99) comes with two trackers and one controller. Setup is the same as above — you just bind each tracker separately.
Binding the second tracker: After the first tracker is bound (screen shows ①), repeat the bind process with the second tracker. The screen will show ② when the second is connected.
Switching between dogs: Double-click the circular multifunction button to toggle between Tracker 1 and Tracker 2. The screen displays '1' or '2' so you always know which dog you're looking at. Direction and distance update immediately when you switch.
Can I add a second tracker to a Single Dog Kit? Yes. If you already own a Single Dog Kit, you can purchase an additional tracker and bind it to your existing controller. Email service@aorkuler.com before purchasing to confirm compatibility and get setup instructions.
